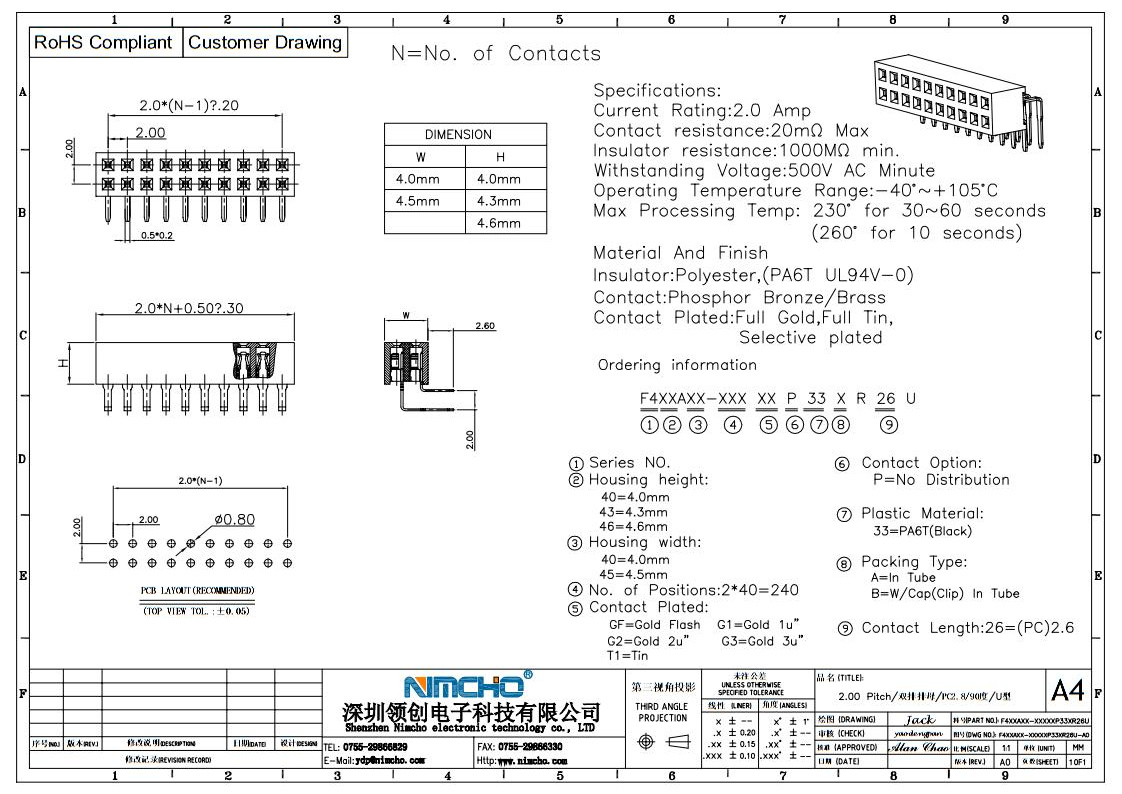

Specifications:

 Current Rating:2.0 Amp

 Contact resistance:20mΩ Max

 Insulator resistance:1000MΩ min.

 Withstanding Voltage:500V AC Minute

 Operating Temperature Range:-40°~+105°C

 Max Processing Temp: 230° for 30~60 seconds

                     (260° for 10 seconds)

Material And Finish

  Insulator:Polyester,(PA6T UL94V-0)

  Contact:Phosphor Bronze/Brass

  Contact Plated:Full Gold,Full Tin,

                 Selective plated
